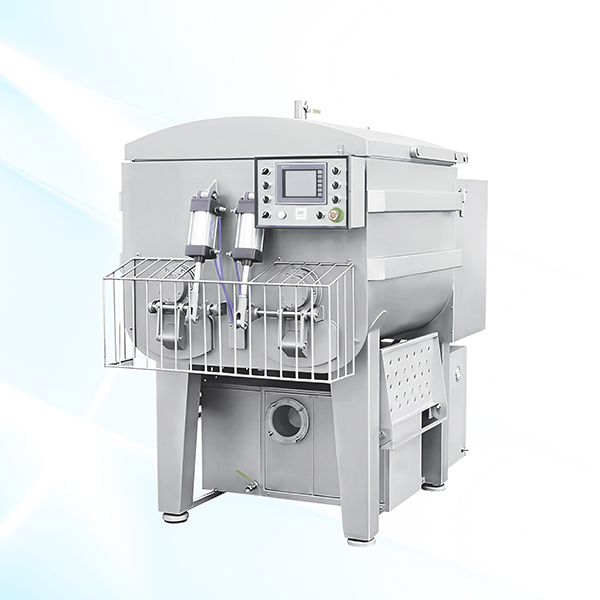

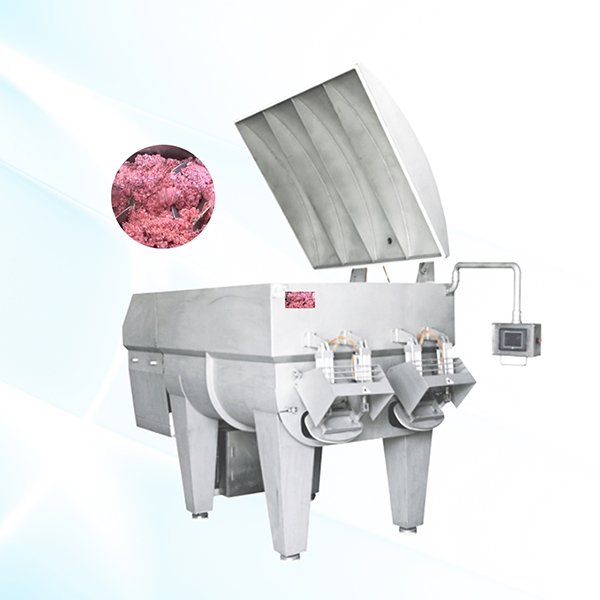

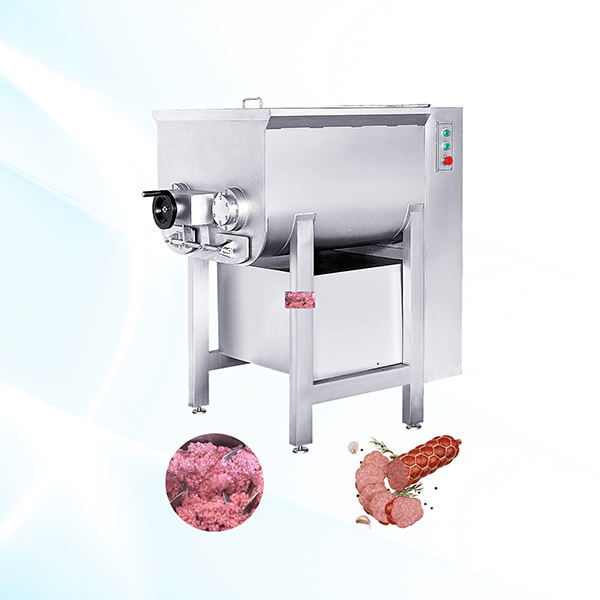

Meat Mixer
This meat mixer produces evenly mixed and bubble-free meats with perfect elasticity, which makes it becomes the top choice in market
The mixer is made of quality stainless steel, solid, durable and hygienic.
Materials are mixed with high performance vacuum system; and vacuum can be set up.

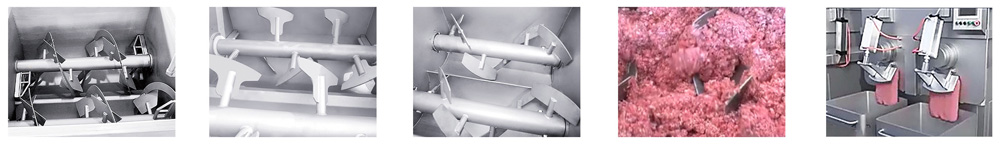

The parallel twin shafts equipped with palm-vane and pushing-ring make a uniform mixing result.
Electric-mechanical control; PLC&HMI control. Total time, interval time and mixing types can be set up.
Technical Parameters
Model | ZJB-750II | ZJB-1200II | ZJB-2000II | ZJB-2500II |
Capacity (kg) | 500 | 900 | 1500 | 2000 |
Power (Kw) | 9 | 11 | 18 | 25 |
Volume (L) | 750 | 1200 | 2000 | 2500 |
Shaft Speed (rpm) | 20-40 Frequency conversion | 20-40 Frequency conversion | 20-40 Frequency conversion | 20-40 Frequency conversion |
Vacuum (KPa) | -80 ~ -85 | -80 ~ -85 | -80 ~ -85 | -80 ~ -85 |
Compressed Air (MPa) | 0.6-0.7 | 0.6-0.7 | 0.6~ 0.7 | 0.6 ~ 0.7 |
External Dim. (mm) | 1950*1430*1870 | 2240*1620*1910 | 2270*1930*2150 | 2340*2150*2230 |
Installation Dim. (mm) | 3000*3000*3200 | 3000*3600*3200 | 3600*3800*3900 | 4200*4500*4200 |
Weight (kg) | approx. 1200 | approx. 1500 | ≈3000 | approx. 3300 |
