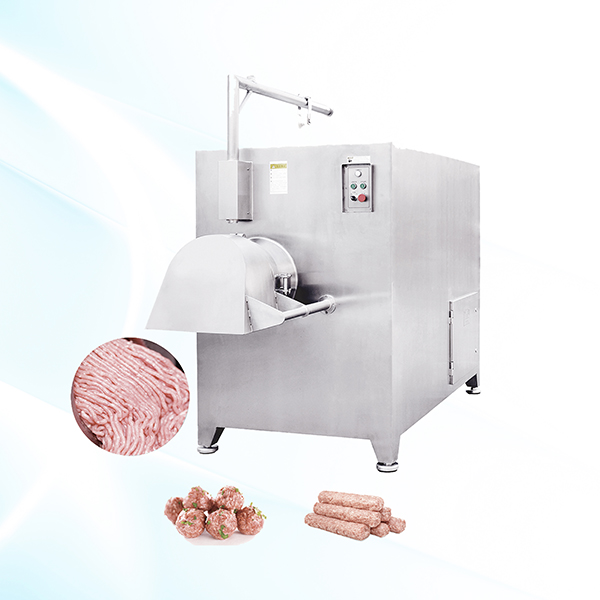

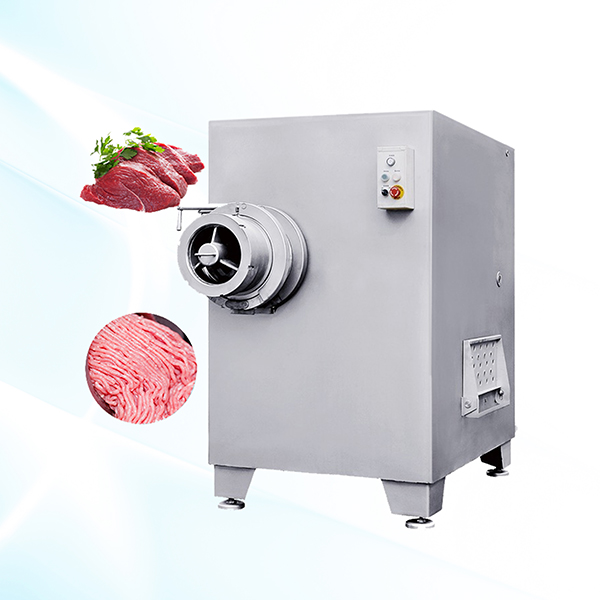

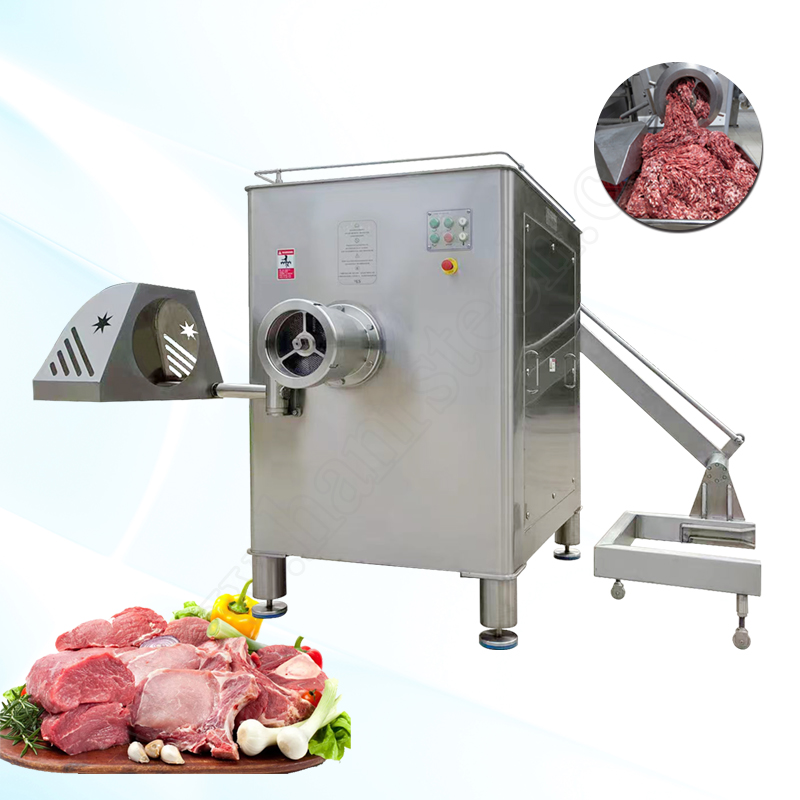

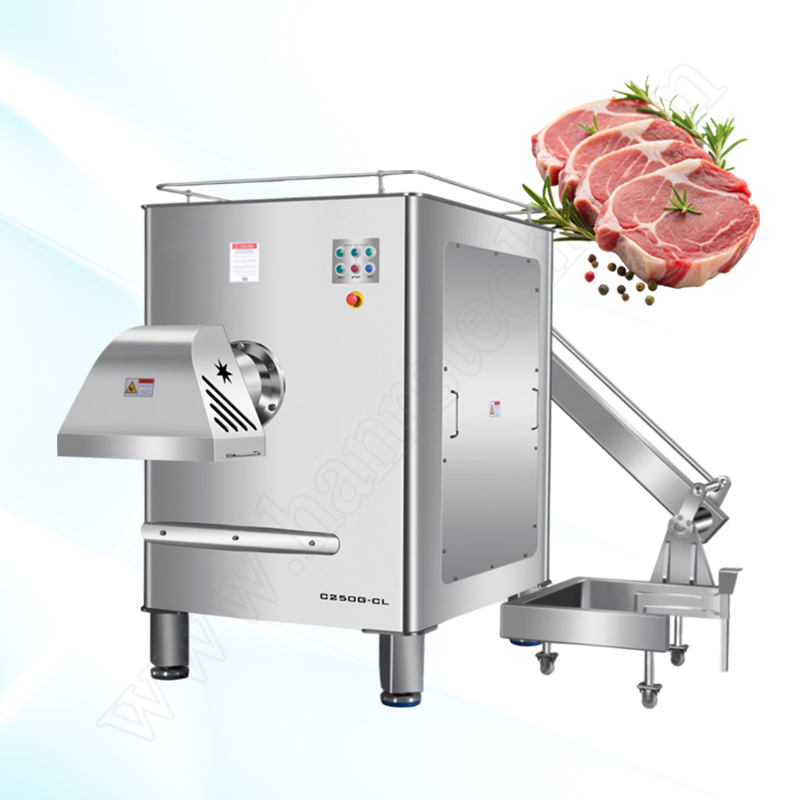

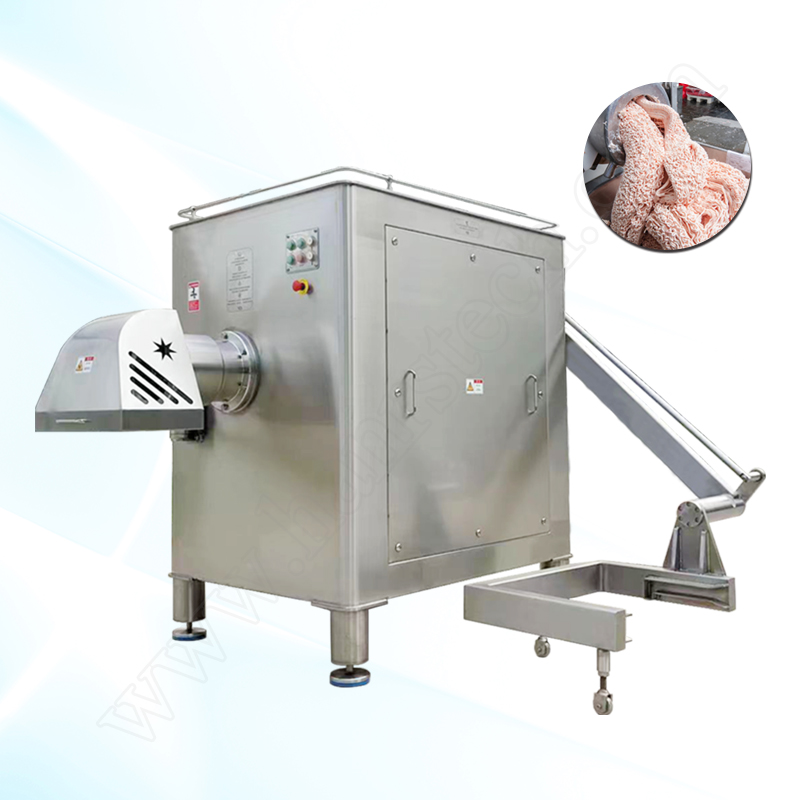

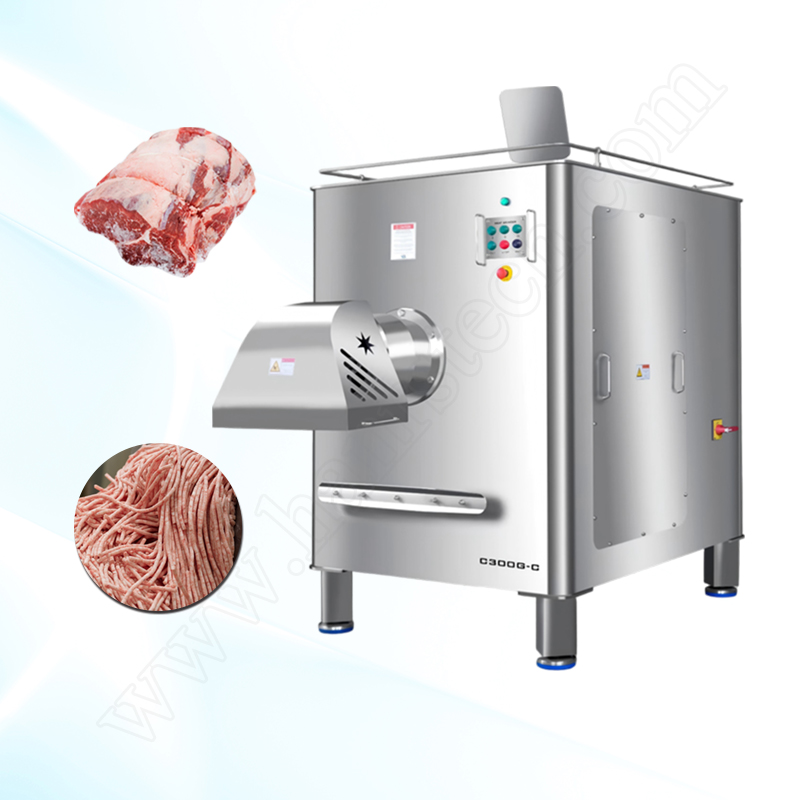

Meat Grinder

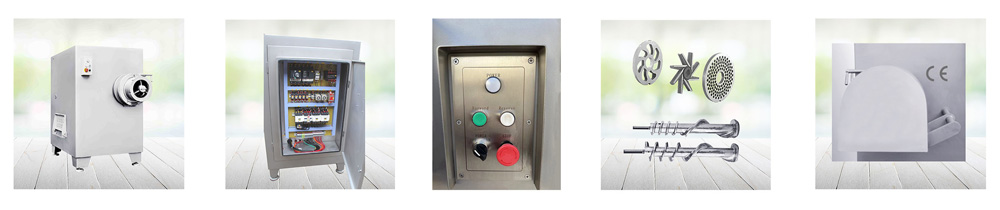

Materials in the hopper are pushed to precut-plate by the rotation of screw. The meat is cut to uniform particles through the relative movement between knife and hole-plate caused by rotary screw.
The main body and food area are made of quality stainless steel, reasonable structure, reliable performance and low noises. Different applications are for both fresh and frozen meat. C300G-C is specialized for mincing frozen meat. To create an excellent meat cutting result, different hole-plates can be selected according to the various processing requirements.
Technical Parameters
Type
C160G-C
C200G-C
C250G-C
C300G-C
Outlet Ø
160mm
200mm
250mm
300mm
Max. Frozen Meat Block Size
50 x 50 x 100mm
100 x 100 x 150mm
200 x 200 x 150mm
600 x 400 x 200mm
Power
18.5KW
30KW
37KW
55KW
Capacity
Up to 3.5 T/Hour
Up to 8 T/Hour
Up to 12 T/Hour
Up to 4T(Frozen) / Hour
Dimension(mm)
1450x1000x1400
1700 x 1150 x1570
2000 x 1200 x1700
2300 x 1300 x1850
Weight
850kg
950kg
1550kg
1800kg
