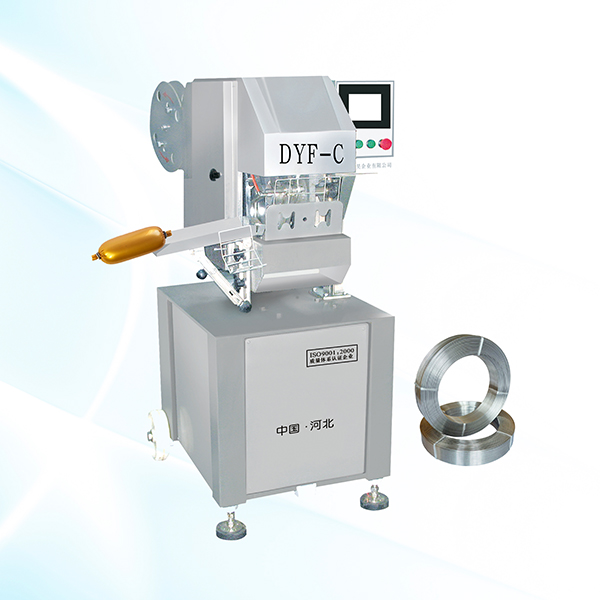

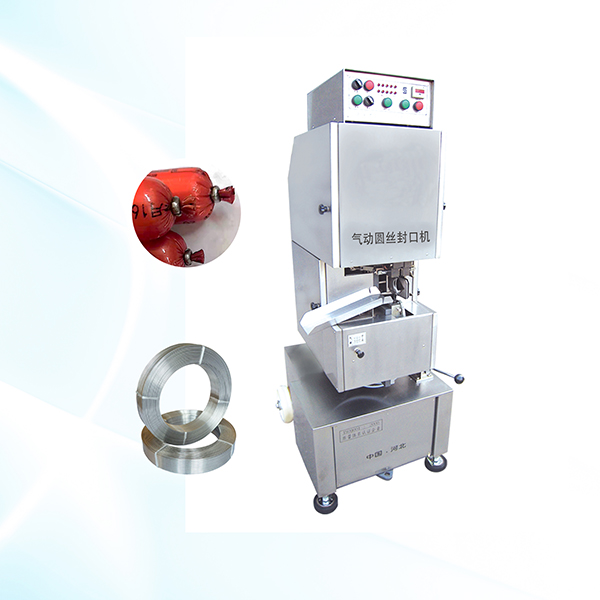

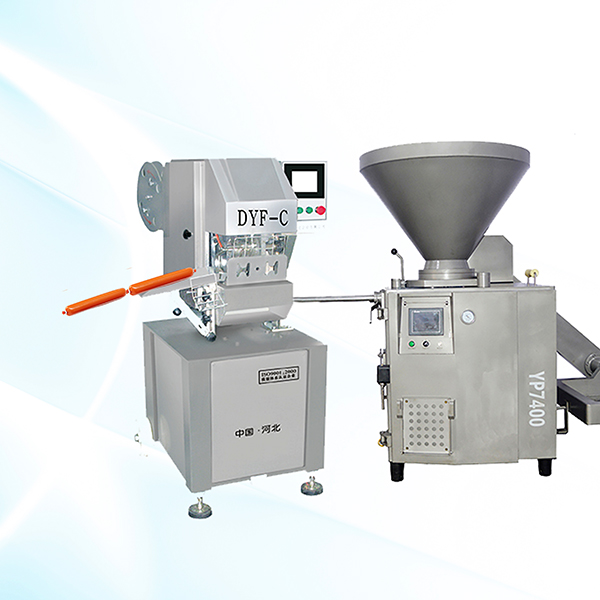

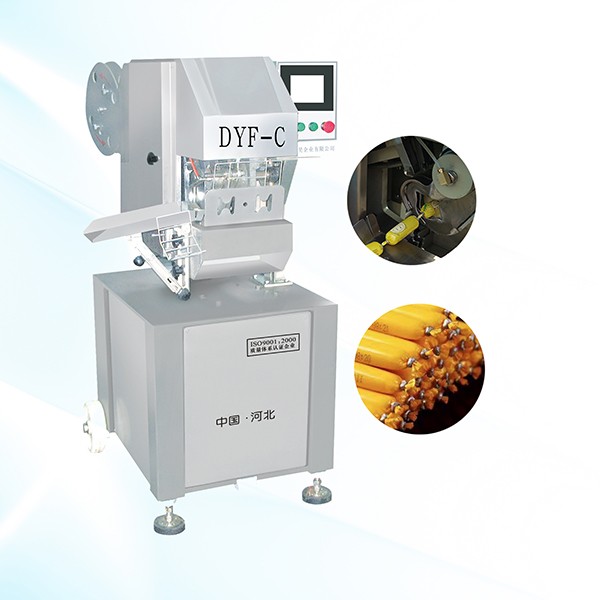

Aluminum Wire double clipping machine
The wire clipping Machine is made of high quality stainless steel, The surface adopts special treatment technology, which has high finish and good wear resistance reasonable in structure, easy to clean.
Efficient driving mode: The machine adopts continuous driving mechanism,At the same time, the machine also has an intermittent mode of work.
Advanced controlling system: ;with programmable controller (PLC) as the control core and servo motor as the power, It has the characteristics of flexible computer programming, high efficiency, simple operation and so on.
Convenient lubricating system: the machine has an advanced centralized oil supply system,easy to make the whole machine get good lubrication.Low maintain cost.
Technical Parameters
Model | DYF |
Speed (times/min) | 40-100 |
Voltage | 220V 50HZ |
Power (kW) | 3 |
Air pressure | 0.5—0.6 MPa |
Suit casing size | Flat Width:30-90mm Cal: 19mm-57mm |
Aluminium size(mm) | φ2.1、φ2.45、φ2.7、φ2.9..... |
The length of stretch | 36-100mm (optional) |
The height of sealing | 980—1050 mm |
External Dim. (mm) | 1600×950×1700mm |
Weight (kg) | approx.650 |
