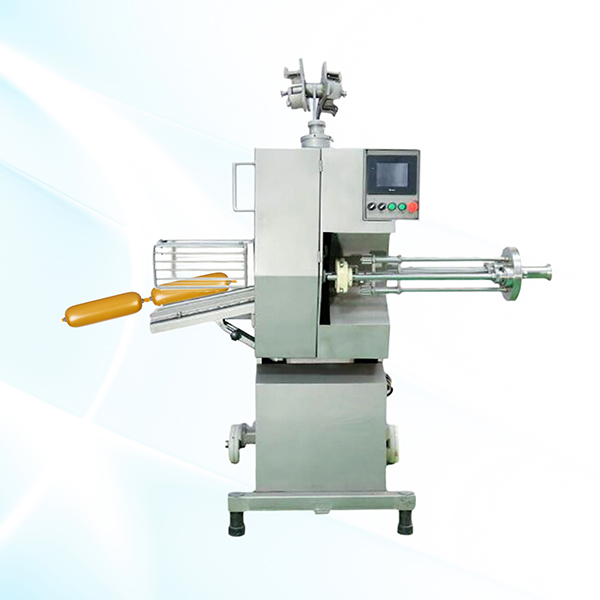

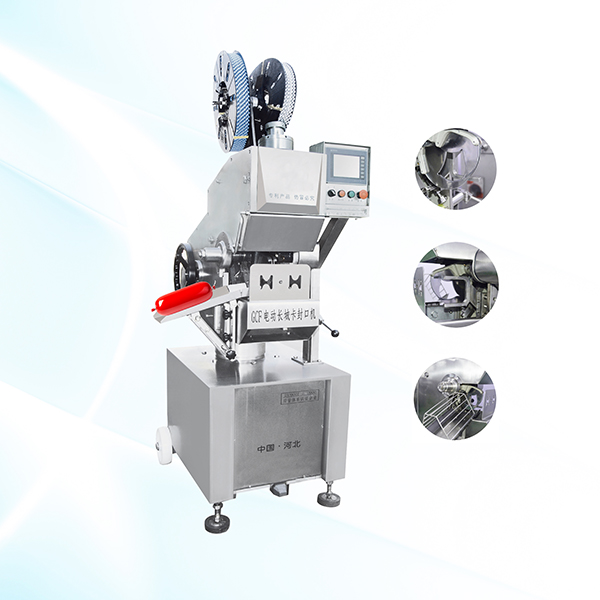

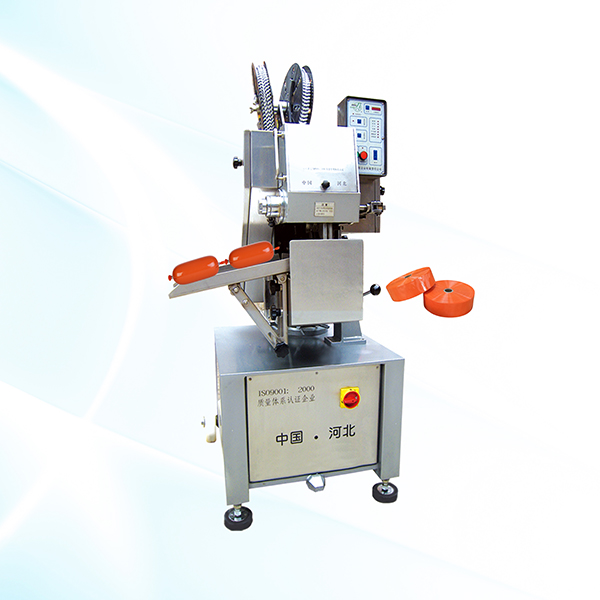

Clipping Machine
This Machine is made of high quality stainless steel,reasonable in structure, easy to clean.Special surface treatment, highlywear-proof.
Advanced controlling system:Equipped with man-machine interface,servomotor as drive,simple operation.
Efficiency driving mode: The machine adopts successive driving mechanism, avoids that the parts worn too much .At the same time, the machine adopts intermittent driving mechanism, Convenient lubricating system, Low maintain cost.
Advantages:
1. The components in the area in contact with the product are food-safe
2. Advanced PLC Control , Easy operation and direct display;
3. Simple operation with Safety Touch and easy to clean
4. Adopted with Frequency Control: High speeds, Start stable, Low noise, Saving energy
5. Safety protect System，Burst detection with automatic machine stop
6. Widely used inmeat , food and non-food areas for the widest range of products.
Technical Parameters
Model | GCF |
Speed (times/min) | 40-120 |
Voltage | 380V 50HZ |
Power (kW) | 3 |
Air pressure | 0.5—0.6 MPa |
Suit casing size | Flat Width: 40 -135mm Cal: 25mm - 85mm |
Suit clips： | The range of 15 and 18 |
The length of stretch | 36-100mm (optional) |
The height of sealing | 980—1050 mm |
External Dim. | 1200×900×1900mm |
Weight (kg) | approx.560 |
