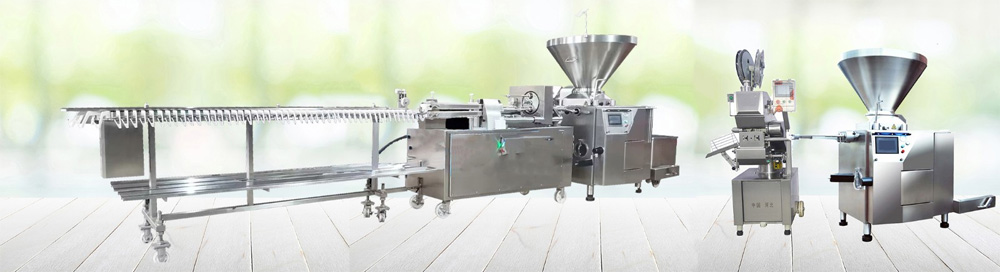

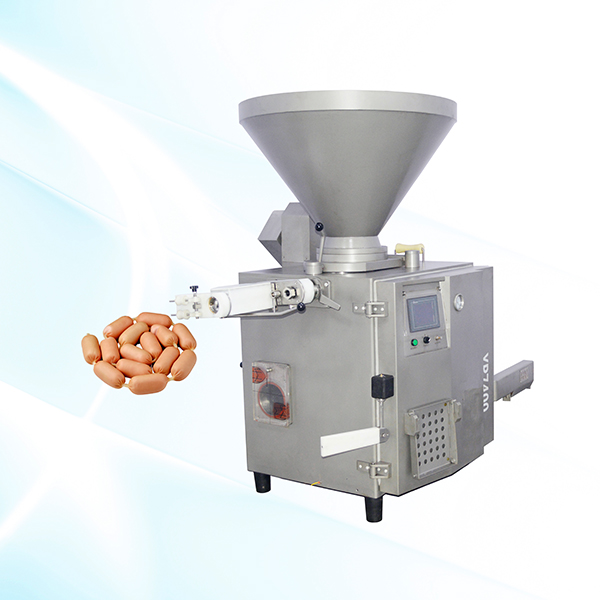

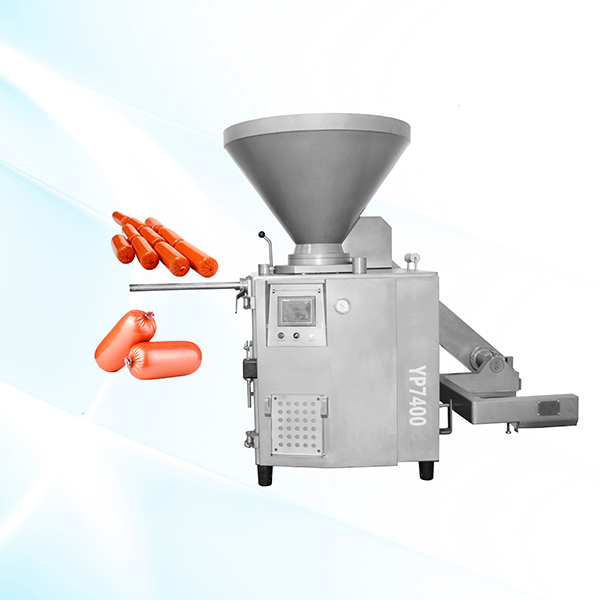

Vacuum Filler
This vacuum filling machine is made of high-quality 304 stainless steel, reliable and durable, easy to clean, and fully meets the requirements of food safety.
The maximum direct filling capacity is 6500KG/H, and the outlet pressure of vane pump is 40 bar.
The vacuum system adopts Germany BUSCH 40type vacuum pump

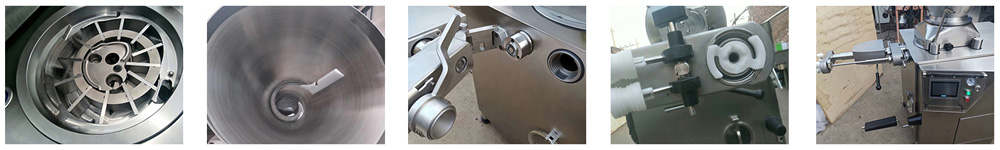

The main components such as pump body, rotor, van and Eccentric are made of high-quality alloy steel with high machining precision, good wear resistance, long-term precision and long service life.

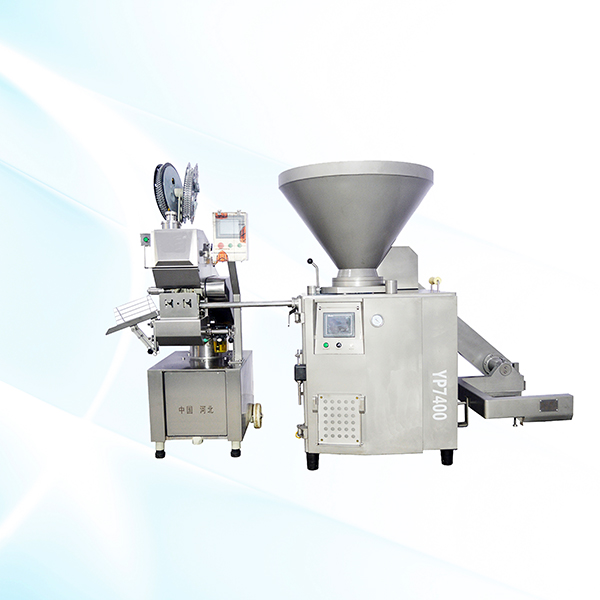

This machine has its own hoist, which using a 200L standard material truck. This machine can be connected with any brand clipping machine to realize automatic production.
Advantage:
1. The equipment structure design is reasonable, especially the reducer part, self-design, long service life.
2.The spare parts are machined by NC processing equipment with high precision and long life.
3.Quantitative accuracy and can be maintained for a long time, good sealing, low cost in the later stage.
4.The use of Germany's original BUSCH vacuum pump, extreme working pressure 0.1mbar, effectively prolong the shelf life of the product.
5. The electrical part realizes remote control, which is real-time and convenient.
6. Excellent sanitary condition, no sanitary dead corner, easy to maintain.
7. It has the function of Internet of things, which can monitor the operation status of the equipment in real time.
Technicial data
| Item | Data |
| Filling capacity: | 6500kg/h |
| hopper volume: | 250L |
| Voltage | 380V 50HZ |
| Main power: | 10kw |
| Vacuum degree | -0.1MPa |
| Filling pipe | φ50mm |
| Center Height | 993-1050mm |
| overall dimension: | 1880*1369*2226mm |
| Weight (KG) | 1300 |
