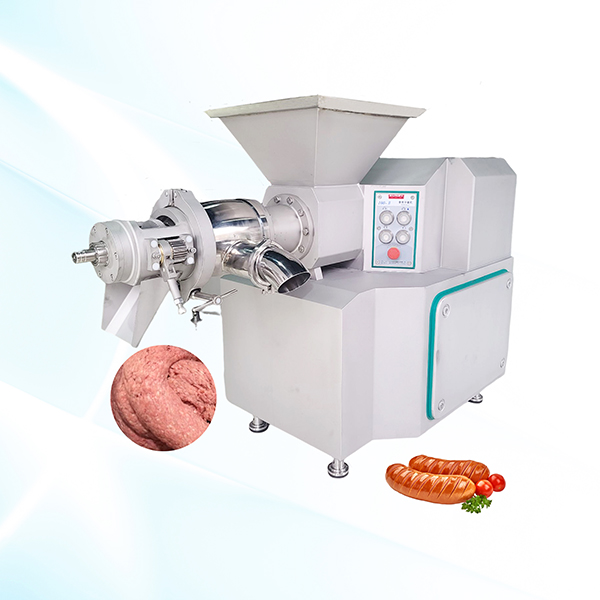

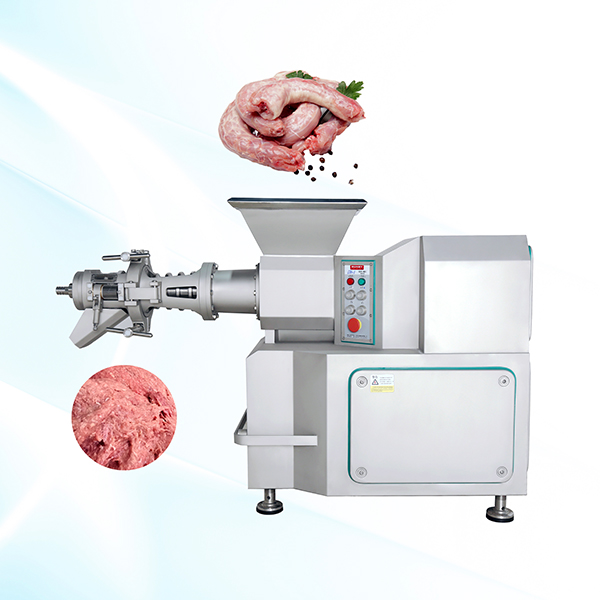

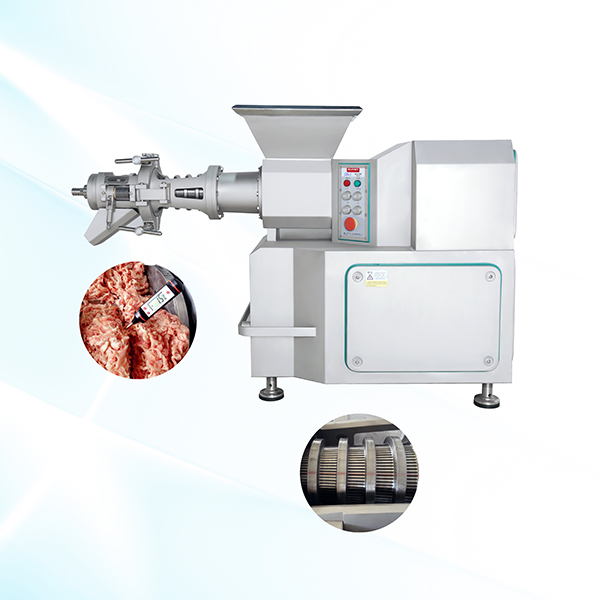

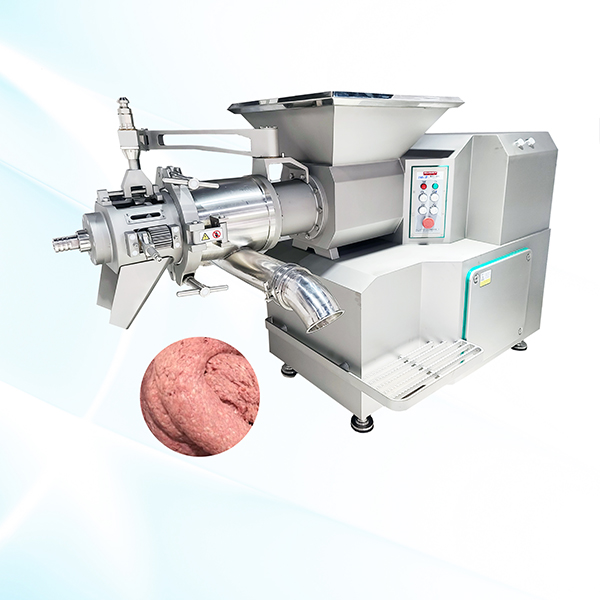

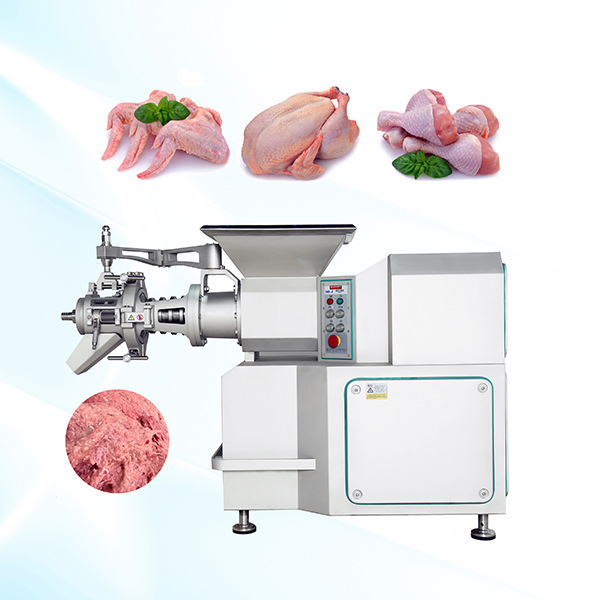

Meat Deboner
our meat deboner is made of high-quality material, accurate machining and imported key parts, which ensure a simple operation, easy maintenance and high performance.
Working principle: By using the technology of continuous shearing and mass separation of micro-particles under pressure, the mass separated by rapid shearing in the state of fine particles,the structure is intact, and the temperature is low.Range of application: chicken, chicken bone, duck, fish, etc. Effect of separation: The separated muddy flesh is well-emulsified without bone fragments, which can be proportionally added into various products.
Advantage:high productivity, high meat rate, boneless residue, less wearing parts, low maintenance cost, and be matched into a production line with auto-feeding machine, auto-portioning machine.
Technical Parameters
| Model | GF130 | GF160 | GF180 | GF220 |
| Voltage | 380V、50Hz | 380V、50Hz | 380V、50Hz | 380V、50Hz |
| Power(Kw) | 13 / 16 | 22 / 28 | 26 / 32 | 55 |
| Capacity (Kg/H) | 1000 - 1500 | 2000 - 3000 | 3500 - 4500 | 6000-8000 |
| Production rate | 65-90% | 65-90% | 65-90% | 65-90% |
| Bone residue in the meat | <0.05% | <0.05% | <0.05% | <0.05% |
| Size(mm) | 1990*820*1300 | 2130*890*1400 | 2420*1200*1500 | 2750*1450*1750 |
| Weight(Kgs) | 800 | 1350 | 1500 | 2150 |
