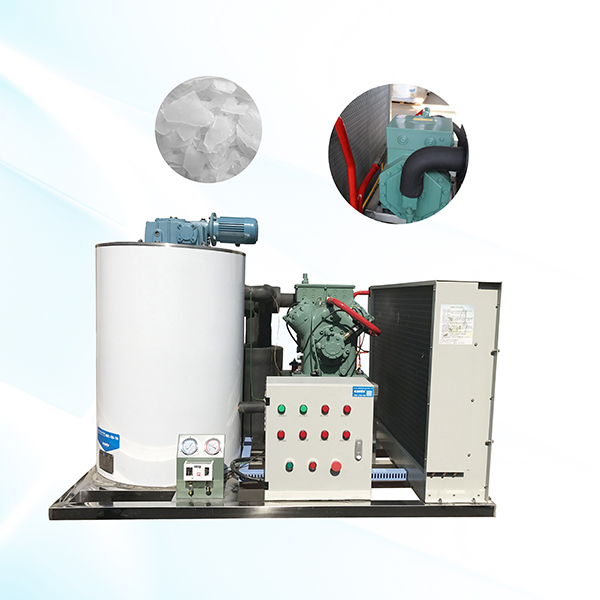

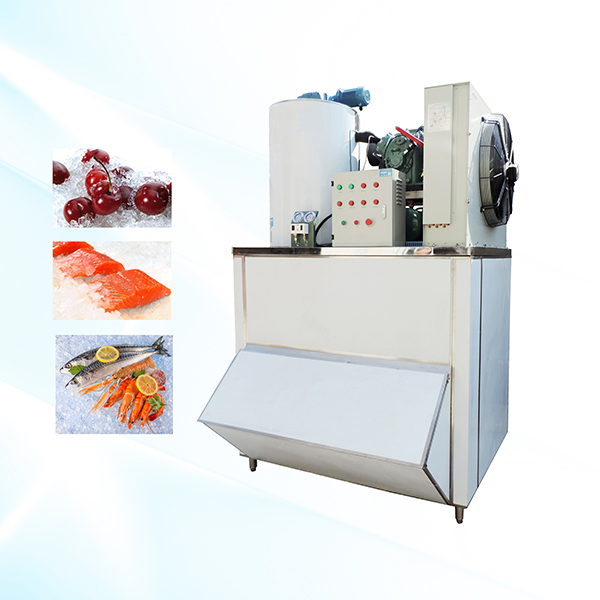

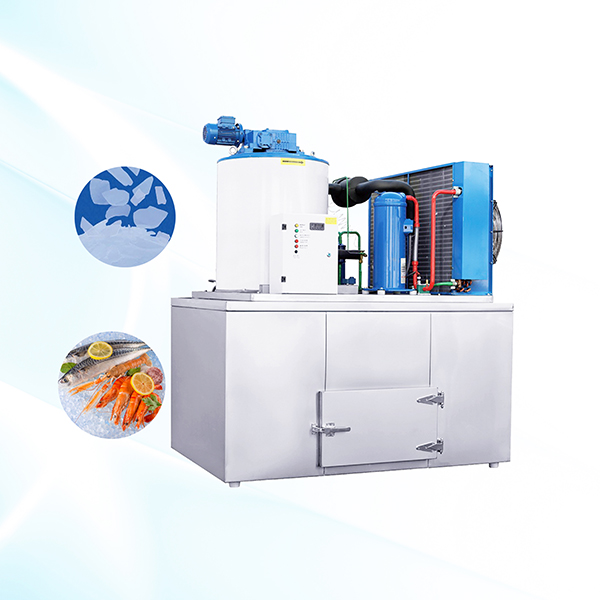

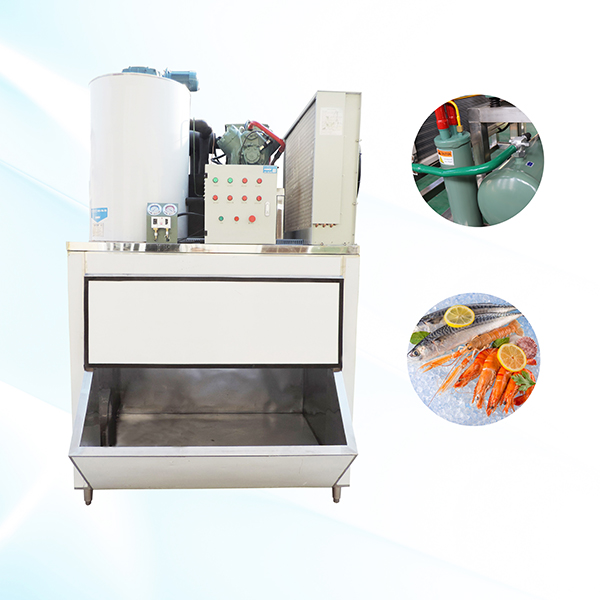

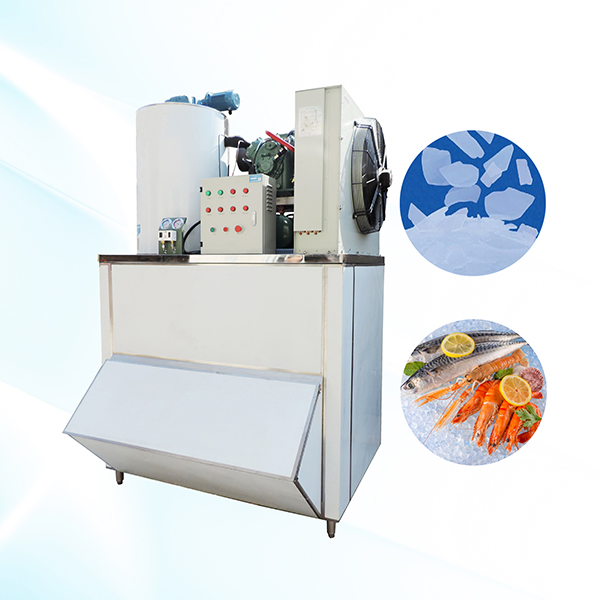

Flake Ice Maker
The commercial series of ice flaker machine always used in the supermarket or seafood restaurant for its clean ice and convenience as well as low cost to keep the food fresh .The flake ice is warmly welcomed for its cleanness,shapeliness,whiteness, glittering and translucent as well as low temperature to firstly keep the food fresh such as fish, meat and chicken ,then show a good view to the visitor and customer.

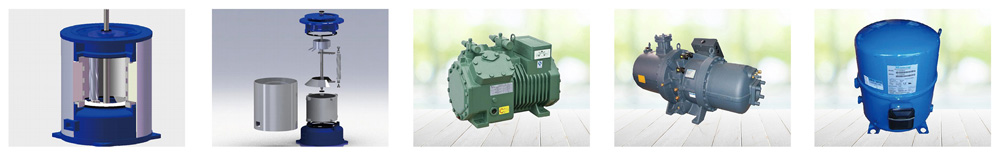

Our flake ice maker is Adopting German technology,the evaporator is welded of low temp steel alloy 16MnR ,whose thermal conductivity is close to Aluminum.This high quality evaporator has made our output 3-5% higher than our peer products for the same configuration.The evaporator is annealed and coated with hard chrome plating layer,which makes its life time as long as 10-13years.
The ice scraper and shalf are made of stainless steel 304.The ice scraper is a molded part instead of welded part. Its service life is extended .
Advantage:
Dynamic micro-computer control system with touch-screen .displaying failure details and running process in the touch screen and give the solution intelligently.
The humanistic designed, Feel free to set the start&stop time of the machine as you need.
Perfect failure querying system. The red warning signal flicker if any failure occurred, and the relevant solution can be queried instantly .
Running state play in the touch-screen. water flowing, ice dropping ...... is clear shown on the touch screen, warning signal occurred at the exact position when machine is in abnormal.
Completely safety unit.
Europe CE standard Designing .
Technical Parameters
| Mode | MF1T | MF3T | MF5T | MF10T |
| Daily output(T/24h) | 1 | 3 | 5 | 10 |
| Refrigerating capacity(Kw) | 5.6 | 17.2 | 38.7 | 76.5 |
| Total Power (Kw) | 4.22 | 10.88 | 22.55 | 45.5 |
| External Dim. (mm) | 1320*900*900 | 1700*1200*1320 | 1800*1500*1470 | 2200*1900*1750 |
| Weight (kg) | Approx.450 | Approx.600 | Approx.980 | Approx.2020 |
