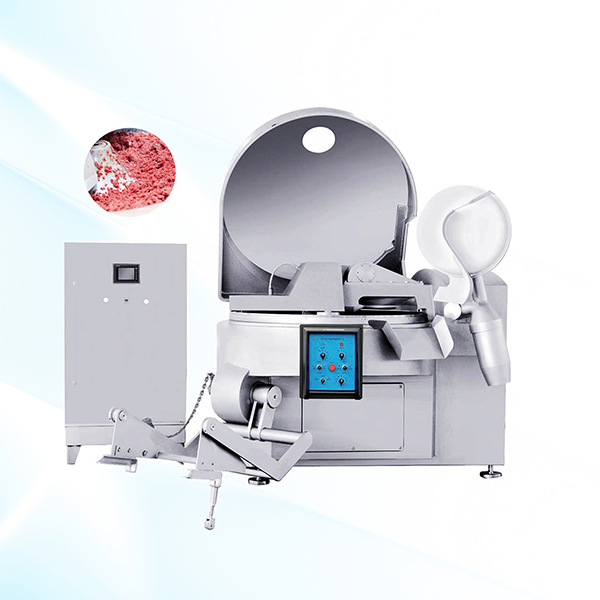

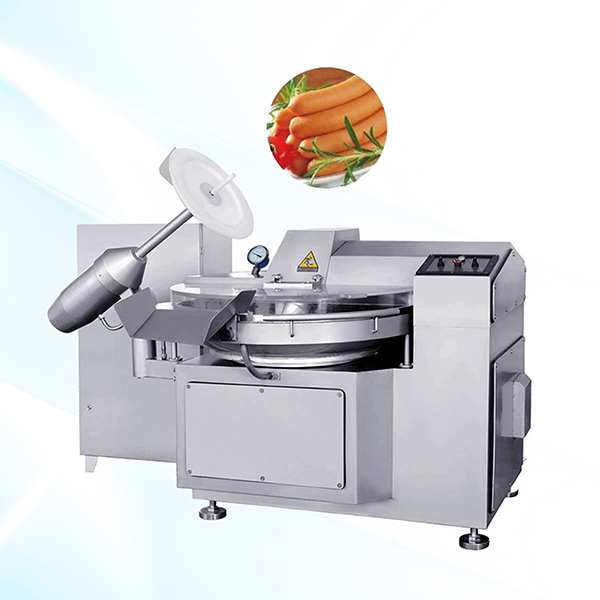

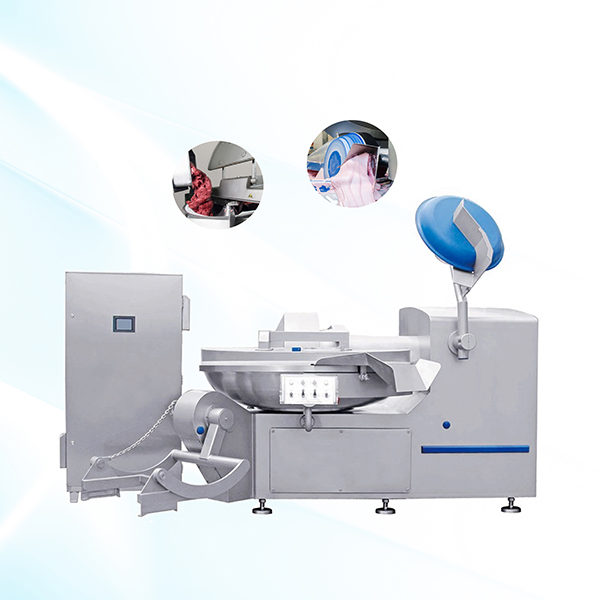

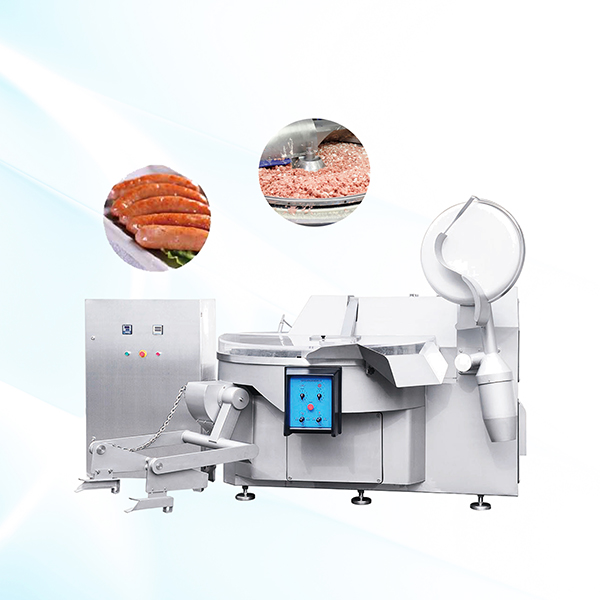

Vacuum Bowl Cutter
The main body and surface are made of high-quality stainless steel, reasonable structure, high machining accuracy, easy operation and maintenance. It realizes full protein abstraction and abundant combination of additives and water.
Advanced PLC &HMI (Human-Machine Interface) control system .
Temperature, Time and Bowl revolution can be displayed and controlled.
The distance between knife tip and bowl can be 1.0-1.5mm, which guarantees the best result of chopping & mixing.
Key parts such as Knives, Bearings, Frequency convertors, PLC, HMI and Electric elements remain world-top quality. Imported knife is optional.
By water-cooling-loop devices, the temperature of cutter shaft fore bearing could be lower down.
Technical Parameters
| Model | ZZB-125 | ZZB-200II | ZZB-330II | ZZB-525II |
| Capacity (kg/time) | 60-70 | 100-140 | 240-260 | 300-420 |
| Volume(L) | 125 | 200 | 330 | 525 |
| Power (kW) | 51.97 | 84.43 | 120.5 | 149.8 |
| Knives(Pieces) | 6 | 6 | 6 | 6 |
| Shaft Speed (rpm) | 300-4500 | 300-4200 | 300-3600 | 300-3600 |
| Frequency | Frequency | Frequency | Frequency | |
| Linear Speed(m/s) | 110 | 119 | 122 | 144 |
| Bowl Speed (rpm) | 11/17 | 6-12 Frequency conversion | 6-12 Frequency conversion | 1-8 Frequency conversion |
| Unloader Disc Speed(rpm) | 83 | 30-80 Frequency conversion | 30-80 Frequency conversion | 30-100 Frequency conversion |
| Vacuum (kPa) | -80 ~ -85 | -80 ~ -85 | -80 ~ -85 | -80 to -85 |
| External Dim.(mm) | 1910x1930x1850 | 2340x2010x1950 | 2570x2340x2150 | 3300x2850x2400 |
| Installation Dim. (mm) | 3000x2500x2000 | 4500x3500x3500 | 5000x4000x3500 | 5000x4000x3500 |
| Weight(kg) | approx.3000 | approx.5000 | approx. 6500 | approx.8000 |
