Sausage Linker

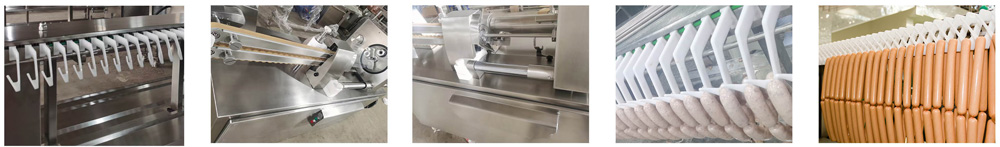

This sausage line included vacuum filling machine, twister and hanging machine.
Max speed is 2000 knots / min (depending on product specifications and casing quality); unique fixed-length transmission system for more accurate product length control, weight control, tightness control and wider casing adaptability
High-speed double-tube fixed-length divider can realize stable enema length control, weight control and tightness control according to production demand under the control of quantitative computer, and the sausage length can be adjusted steplessly.
Productivity: the production speed of 4-5cm products can reach 1200 knots / min, and that of 5-12cm products can reach more than 600knot / min. For Chinese sausages with 60g weight and 22mm caliber protein casings: the speed of the twisting machine is not less than 500 parts per minute.
High speed fixed length sharing machine is connected with root vacuum enema machine.
rotary double-tube switching structure, alternating continuous filling, shortening the pause time of upper casings and improving production efficiency
High speed fixed length divider can adjust enema length steplessly according to production demand, and fixed length kink (product length can be slightly adjusted to better meet customer requirements for product length and tightness)
using a high-speed fixed-length distributor, which can reduce the bursting of casings, protein casings are suitable for domestic and imported casings.
driven by servo motor, high speed, low noise
suitable for casing diameter range 13-39mm (suitable clamp butterfly wheel is selected according to different casing diameter), split length range 20-700mm
Electric Power: 4.2 Kw 380-400V, 50Hz, electrical protection grade IP65
With automatic casing thruster, equipped with photoelectric induction, casing detection can be switched in three ways: thruster, photoelectric induction or manual.
